One Skid Best Air Compressor For Sale Electric Compressor

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Quarter

Port:

Qingdao, China

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

Mgreenbelt

Products Model:

AET-20.0/40

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: AET-20.0/40

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: high pressure air compressor used in pet bottle blowing in plywood case.
Delivery Detail: 20 days

Specifications

One Skid Best Air Compressor For Sale Electric Compressor

High Pressur Air Compressor System

Pictures of High Pressure One Skid Design Air Compressor

Advantages of Oil Free Two Stage Air Compressor

1. Complete 304 stainless steel pipeline

Long operation life, excellent anti-corrosion, high temperature resistance, high intensity.

2. Double-acting cylinder

Achieve balanced compression and low energy consumption.

Minimize leakage and optimize efficiency.

Lower compression temperature.

Longer service life of components.

Optimized adjustment.

3. Converter technique application

Eliminate or reduce the operation time of compressor while unloading, accurately tracking the gas demand of users and meeting requirements of different productions.

4. Efficient water cooling system

High Efficient Water Cooling System

Adopt water cooling to cool down the cylinder and stuffing. The compression temperature is under 130°C, greatly reducing the abrasion and enabling the unit to be installed in a narrow space and hostile environment without being affected. Cooling tower radiating heat of air compressor.

Intellectualized Operation System

Full-automatic monitor system makes all operations and parameters clear and inform the accurate failure. The system will automatically point out, diagnose, alarm or stop to protection the air compressor machine.

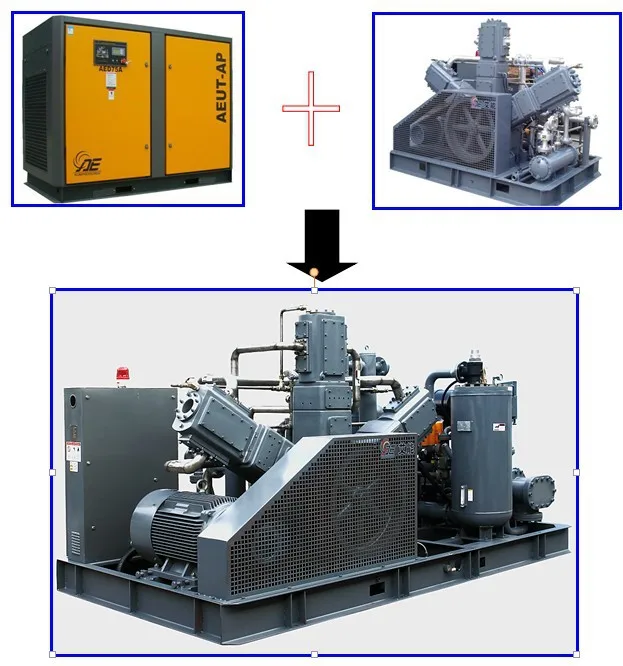

Two Stage Compression

First stage compression: screw motor; Second stage compression: piston motor

Parameters of 40Bar Pressure Air Compressor On Sale
Motor Power	222kw
Shaft Power	210kw
Air Displacement	20.0m3/min
Discharge Pressure	40Bar
Outlet Pipe Size	DN50
Cooling Water Inlet/Outlet Size	2"
Weight	7500KG
Dimension	4150x2150x2100mm
Water Consumption	50T/h

Structure of Oil Free 40Bar Air Compressor

Plastic Industry PET Air Compressor Applications

If you need such air compressor, contact with me:

Lean

Mobile: 008617686681006

E-mail: cncompressors(at)gmail.com

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
